Getting the Most from Your Bearings

Whether selecting new or maintaining existing process equipment, bearings are a critical component in the equipment’s reliability, efficiency, and life. The majority of rotating process equipment today relies upon either rolling element or fluid film bearings to counteract gravity and developed forces in the equipment and allow for free rotation of the shaft. Selecting the right bearing for the equipment and application is essential to the successful operation of that equipment.

A key difference between rolling element and fluid film bearings for personnel concerned about the maintenance of process equipment is the expected life of the bearings. Rolling element bearings typically have a predictable life based on the operating conditions; fluid film bearings, when properly designed and maintained, can operate for decades. Additional comparisons of rolling element and fluid film bearing characteristics, such as lubrication needs and the ability to handle impact loads, are provided in the Bearing Characteristics Comparison chart.

Long life and the desired performance of a fluid film bearing is achieved through the proper selection of the bearing’s materials and mechanical design. Typical factors that affect material selection include load, speed, operating temperature, insulation requirements, and lubricant type and cleanliness. Depending on the requirements, material options include babbitt (a.k.a. white metal), bronze, aluminum tin, polymer, ceramic, cermet, and diamond.

For mechanical design, the fluid film bearing designer must not only consider the proper sizing of the bearing to handle the loads and minimize the power loss but also incorporate features such as preload and offset that optimize the formation of film and tune the dynamic characteristics of the bearing. Tuning the bearing’s dynamic characteristics controls the dynamic performance of the process equipment – to the point where the bearings can limit vibrations.

Lubricant entering the converging geometry of a journal (featured image) or thrust (above) bearing forms a wedge-shaped film; loads are then supported through pressure in the film.

BASIC OPERATING PRINCIPLE OF HYDRODYNAMIC FLUID FILM BEARINGS
The stationary surface of a fluid film bearing is separated from the rotating surface by a thin film of lubricant, be it oil, air, water or process fluid. In hydrodynamic fluid film bearings, the film pressure that separates the surfaces and counters loads (including gravity) is created by the relative motion (rotation) of the surfaces as the lubricant is pulled into a converging geometry between the surfaces. Because of this separating force, no contact of the surfaces occurs during normal operation, reducing wear and power loss compared to surface-to-surface contact.

Thrust bearings counteract axial loads (along the axis of rotation), while journal bearings support radial loads (perpendicular to the axis of rotation). The materials and design of both thrust and journal fluid film bearings are selected to optimize the converging geometries and pressure for increased efficiency of the process equipment and fewer demands on the ancillary equipment.

A combination tilt pad bearing with copper-backed babbitt thrust pads and steel-backed babbitt journal pads (left) and a combination tilt pad bearing with solid polymer thrust pads and polymer-lined journal pads (right).

MATERIALS OF CONSTRUCTION

Selecting a fluid film bearing’s materials of construction relies on two primary factors: application requirements and operating environment.

Babbitt (in particular tin-based alloys) is often the material of choice for fluid film bearings in process equipment when oil is the lubricant. Babbitt exhibits exceptional conformability, compatibility, and embeddability. These qualities reduce the likelihood of damage to the shaft during start-up and shutdown, or from upset conditions, misalignment or the occasional ingestion of contaminants. Because babbitt loses strength as temperature increases, the surface temperatures of babbitt bearings are often limited to 266 degrees Fahrenheit (130 degrees Celsius). Furthermore, the use of babbitt in applications with high dynamic loads can be limited due to babbitt’s relatively low fatigue strength. For the most part, however, babbitt has gained wide acceptance in the process equipment industry because of its many benefits and relatively low cost.
Bronze may be used when operating temperatures are higher than babbitt’s limits. Oil-lubricated bronze bearings are common in process equipment applications where the bearing surface can reach 302 degrees Fahrenheit (150 degrees Celsius), and in some cases even higher. Bronze doesn’t have the conformability and embeddability of babbitt, however. This can lead to shaft or bearing damage when contaminants or misalignment are present. In addition, care must be taken when selecting the material of the rotating surface when using bronze bearings to limit the potential of damage to the rotating components.

A cermet thrust bearing (left) and collar (right).

For rotating as well as reciprocating process equipment that requires higher temperature or better conformability and embeddability capabilities than bronze, aluminum alloyed with tin can be used as the bearing material. Aluminum tin can operate at higher temperatures than babbitt, up to 320 degrees Fahrenheit (160 degrees Celsius), and doesn’t fatigue as readily. Babbitt and aluminum tin are applied to steel for added strength or to chromium copper to enhance heat transfer. Both can be used against a variety of rotating components, including mild steels.

Engineered polymers, as solid components or as a lining on steel backing, are also widely accepted in process equipment. Polymer bearings exhibit embeddability and conformability similar to babbitt bearings while having the ability to operate at higher temperatures and loads. Because they have been proven with relatively thin films, polymer thrust bearings are often used in oil-lubricated applications with unit loads up to 8 MPa (1160 psi)–approximately twice the load typically accepted by babbitt bearings–and temperatures up to 392 degrees Fahrenheit (200 degrees Celsius).

Polymer bearings have the additional benefits of being less susceptible to chemical attack than babbitt, insulating against electrical currents and successfully operating in a variety of lubricants, including water and process fluids. With the right material composition, polymer bearings can also withstand film disruptions due to overload or temporary loss of lubrication.

  Combination tilt pad bearing with polymer-lined thrust pads and bronze journal pads.

When high temperatures, corrosive materials or contaminated lubricant rule out the use of babbitt, aluminum tin, bronze, and polymer, fluid film bearings can be manufactured with extremely hard surfaces. Ceramics, cermets, and diamond have been successfully deployed when operating temperatures exceed 392 degrees Fahrenheit (200 degrees Celsius), when films are very thin and/or when abrasives are present. Unlike babbitt, aluminum tin and polymer, which can operate against mild steels and other traditional shaft materials, ceramic and cermet require deliberate material selection for both the rotating and stationary surfaces to obtain the desired life and performance of the bearings, especially when abrasives are present or films are extremely thin.
The “best” material for bearings may vary even in the same assembly, and material alone will not guarantee performance. The carefully selected material(s) must be paired with the optimum mechanical design.

For mechanical design of a fluid film bearing, the bearing designer must not only consider the proper sizing of the bearing to handle the loads and minimize the power loss but also incorporate features such as preload and offset that optimize the formation of film and tune the dynamic characteristics of the bearing. In the first half of this series, we examined the basic operating principle of hydrodynamic fluid film bearings and the selection of bearing materials. We conclude the series with a closer look at the options available in the mechanical design of the bearing, including the method by which lubricant is introduced and removed from the bearing, a factor that significantly affects bearing performance.


Taper land fixed profile thrust and tilt pad journal combination bearing.

BEARING DESIGN TOOLBOX

The formation of film is critical to the life and performance of a fluid film bearing. A viscous lubricant, the relative motion between the surfaces, and the converging geometry of the bearing are critical factors for the film’s development. Together, these create the pressure to counteract gravity and other forces operating on the shaft.
Although axial loads can be supported with flat bearing faces, typically a geometry is machined into the surface of a fixed profile thrust bearing to create a converging wedge and increase the bearing load capacity. A fixed geometry is designed for a specific condition; therefore, tilt pad thrust bearings are often used to accommodate changing conditions. Self-leveling tilt pad thrust bearings accommodate misalignment between the bearing and the collar by equalizing load between pads.



Self-leveling tilt pad thrust bearing to accommodate misalignment.

A journal bearing, due to the dissimilar diameters of the bearing and shaft, naturally has a converging wedge when the shaft is not centered in the bearing. For improved static and dynamic performance, a defined profile can be machined into the journal bearing to develop the proper film. If stability is still an issue, if varying conditions must be accommodated, or if other bearing performance parameters require optimization, journal tilt pads are often used.



Two of the many defined profile options for fixed geometry journal bearings: straight bore (left) and machined-in taper (right).

Thrust and journal bearings are sized to handle application load requirements and fit the given envelope. Other features can be optimized to achieve specific dynamic and static performance. Pad arc, the portion of the pad that develops pressure, can be adjusted to affect power loss and temperature.  The offset, the distance from the leading edge to the pivot as compared to the pad arc, has a significant effect on the formation of the film and can impact bearing temperatures, power loss, and, in the case of journal bearings, dynamic performance.

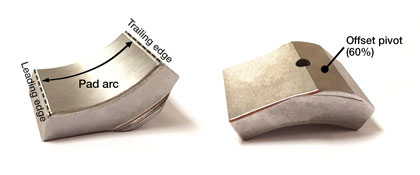

Journal and thrust pads illustrating pad arc, leading and trailing edges, and offset pivots. The journal pad (left) is an integral rib tilt pad; the thrust pad (right) is a line pivot tilt pad.

In tilt pad journal bearings specifically, temperatures, power loss, and dynamic performance can be greatly affected by the bearing clearance (the difference between the bearing bore and shaft diameter), by the length of the bearing, and by preload. Preload represents the deviation of the pad bore to the bearing bore. It can be positive (pad bore is greater than bearing bore), zero (pad and bearing bore are the same), or negative (pad bore is smaller than bearing bore). If the preload is positive, a converging wedge forms. A negative preload restricts flow into the pad and is not recommended.

An exaggerated view of positive preload geometry (applicable to journal bearings only).

On both journal and thrust tilt pad bearings, the pivot is selected based on specific needs, such as the required life of the pivot (stress), stiffness, and ease of pivot tilt in one or more directions. Common pivot types are point contact, line contact, ball and socket, and Flexure Pivot®. Each of these has distinct benefits. For example, the integral construction of the Flexure Pivot design’s pad and housing achieves tighter control of clearance and preload, as well as the desired tilt without pivot wear.

Flexure Pivot tilt pad journal bearing.

Another design option that significantly affects bearing performance is the method by which lubricant is introduced and removed from the bearing. By supplying lubricant to the leading edge of the tilt pad and allowing the lubricant to freely leave the bearing and its housing, ‘Directed Lubrication’ bearings operate with lower power losses and at lower operating temperatures than flooded bearings, where the lubricant is typically introduced into the bearing away from the film and flow out of the bearing is restricted. Flooded lubrication creates lubricant shearing outside the film that does not contribute to the load carrying capacity of the bearing.

Examples of trend lines for power loss and maximum pad temperature with flooded versus ‘Directed’ lubrication.

BRINGING IT ALL TOGETHER

Combining select materials and design features will optimize performance further than either materials or design features on their own. For example, combining ‘Directed Lubrication’ with advanced material bearings—which are capable of handling thinner films, higher temperatures, and therefore, higher loads—can greatly reduce power loss compared to a flooded design with traditional bearing materials such as babbitt. Using advanced materials allows for a smaller bearing and lower viscosity fluid (even process fluid), thus reducing power loss. If power loss reduction is not required, a higher safety margin can be achieved.

Switching from a lightly loaded bearing with flooded lubrication (point A) to an optimized smaller bearing with ‘Directed Lubrication’ (point B) can significantly reduce power loss.

With the right material(s) and design, fluid film bearings can offer first-rate dynamic performance, low friction, minimal to no wear, and long life, making them the right choice to meet the demands of today’s process equipment.

For More Information:

Barry J. Blair is chief engineer at Waukesha Bearings, headquartered in Pewaukee, Wisconsin. He has responsibilities for fluid film bearing research and development, including new products and the refinement of bearing design tools and methods. For more information, visit www.waukeshabearings.com.
